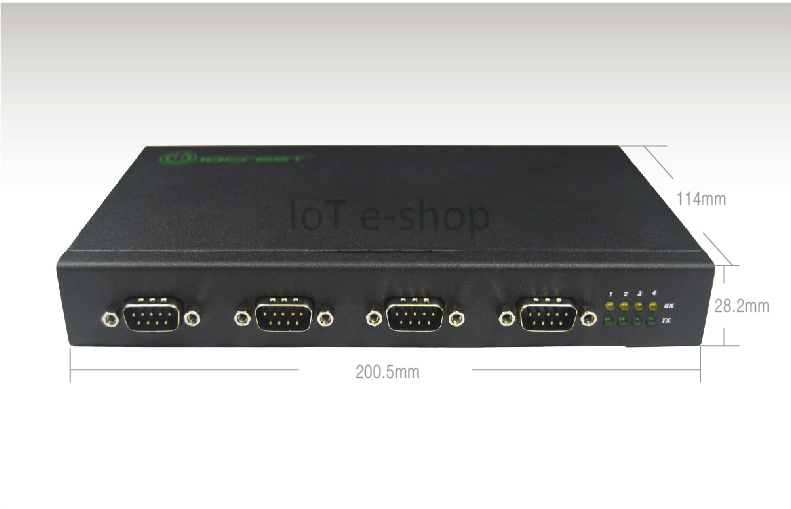

USB to RS 422/485 converter 4-way DB9 hub ( FTDI )

The product is a universal USB to RS422 / 485 converter, compatible with USB, RS422, RS485 standard, can be single-ended USB signal into four RS422 / 485 signal, providing surge protection power per line to ensure RS422 / 485 interface, RS422 / 485 terminal through the DB9 male connector connector makes it easy to achieve the USB host computer and multi-channel RS422 / 485 bus system and data transmission between devices.

The main means of communication:

1. Point to point four-wire full-duplex

2. Point to multi-point four-wire full-duplex

3. Point to point two-wire half-duplex

4. Point to multi-point two-wire half-duplex

In order to prevent signal reflection and interference, a matching resistor (parameter: 120Ω 1 / 4W) must be connected to the termination of the line when the converter is in full or half duplex wiring.

Performance parameters:

In line with USB1.0, 1.1, 2.0 standard;

Meet EIA RS422, EIA RS485 standard

USB signal: VCC, DATA-, DATA +, GND

RS-422 signal: T / R +, T / R-, RXT +, RXD-, GND; RS-485 signal: T / R +, T / R-.

RS-422 work: point to multi-duplex two-way communication

RS-485 work: point to multi-duplex two-way communication

The maximum transmission distance: USB port is not more than 5 meters, RS-422/485-side 1200 meters (9600bps)

Transmission medium: twisted pair or shielded cable

Load capacity: RS-422, up to 10, including the master device; RS-485, up to 32

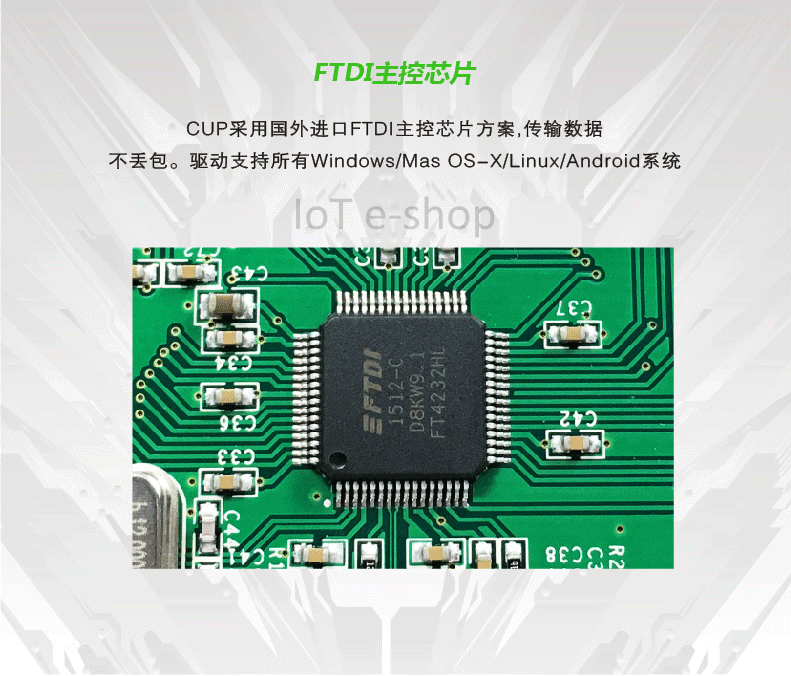

Baud rate: 300 baud to 230400baud automatically detect the serial port transfer speed;

Flow control: none, hardware and xon / xoff

Interface protection: Surge protection, ± 15KV electrostatic protection

Signal indicator: send (TXD), receive (RXD)

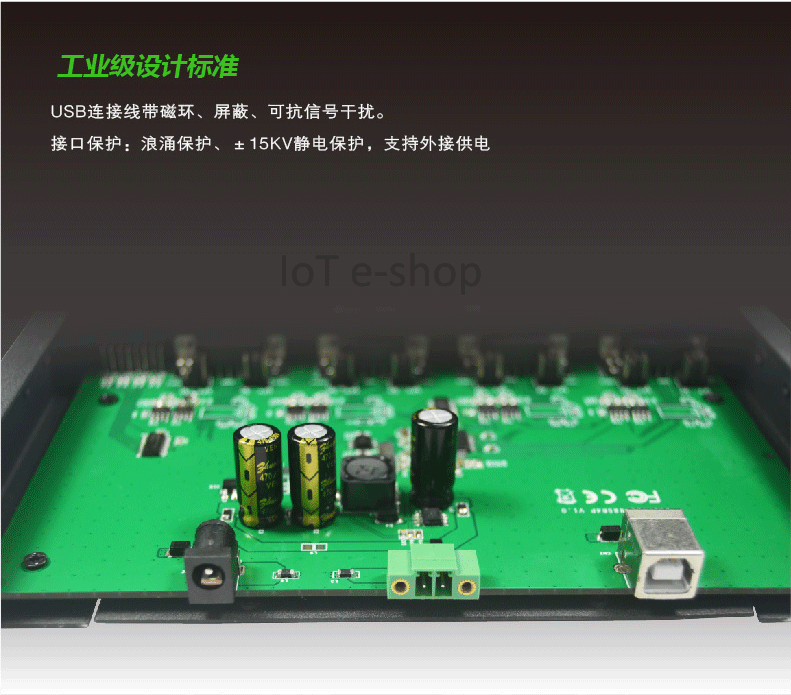

USB cable with magnetic ring, shield, anti-signal interference;

Optional DC Jack (DC 5V) or Terminal Block Power Connection (9-36 DC)

Working environment: -40 to 85 6 2C

Supported systems:

Windows XP,Vista,7,8 ,10 32,64-bit, Windows Server 2K3,2K8,2K12 32,64-bit;Windows XP Embedded;Windows CE 4.2, 5.0 and 6.0

OS-X mac

Linux 3.2+

Android

packing list:

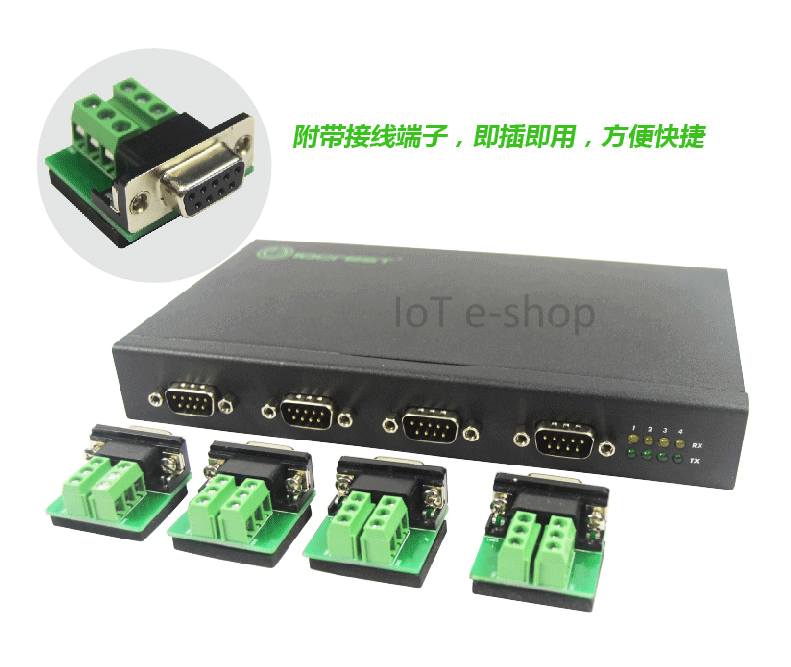

1 x USB 2.0 to 4-port serial adapter

1 x Driver CD

1 x manual

1 x USB Type-A to Type-B

1 x power adapter
