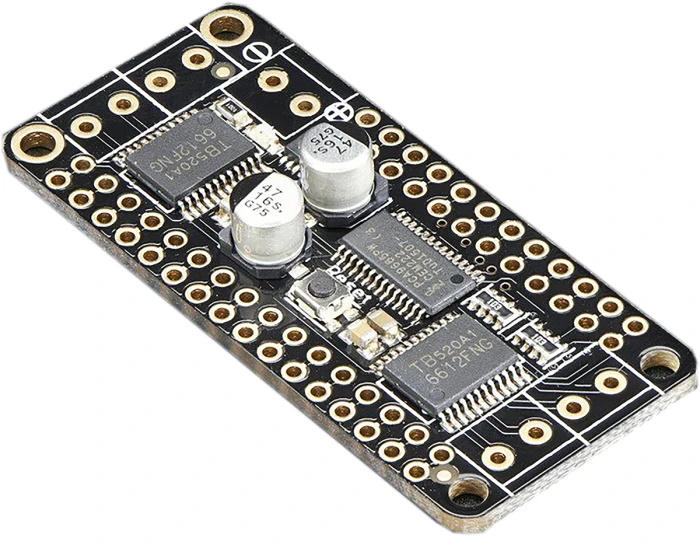

DC Motor + Stepper FeatherWing

Motor FeatherWing Specs:

• 4 full H-Bridges: the TB6612 chipset provides 1.2A per bridge with thermal shutdown protection, internal kickback protection diodes. Can run motors on 4.5VDC to 13.5VDC.
• Up to 4 bi-directional DC motors with individual 12-bit speed selection (so, about 0.02% resolution)
• Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping.
• Motors automatically disabled on power-up
• Big 3.5mm terminal block connectors to easily hook up wires (18-26AWG) and power
• Polarity protected 2-pin terminal block and jumper to connect external power, for separate logic/motor supplies
• Completely stackable design: 5 address-select jumper pads means up to 32 stackable wings: that's 64 steppers or 128 DC motors! What on earth could you do with that many steppers? I have no idea but if you come up with something send us a photo because that would be a pretty glorious project.
• Download the easy-to-use Arduino software library, check out the examples and you're ready to go!
