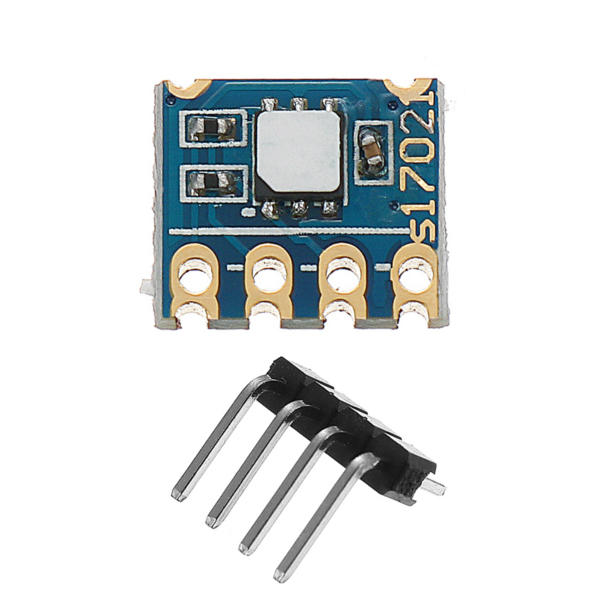

SI7021 mini โมดูลเซ็นเซอร์ วัดอุณหภูมิและความชื้นอากาศ I²C

Specifications

Operating voltage: 1.9-3.6V (recommended 3.3V)
Standby current: 60nA
Temperature range : -40-85 °C (recommended -10-60 °C)
Temperature accuracy: ±0.4°C ( -10-85 °C)
Humidity range: 0- 100%RH (20%-80%RH recommended)
Humidity accuracy: ±3%RH (0-80%RH)
Temperature conversion time: 7ms
Humidity conversion time: 17ms (Temperature conversion will be performed automatically when humidity conversion is performed)
Interface type: I2C 2.54mm pitch pad
module size: 8.5X10mm
