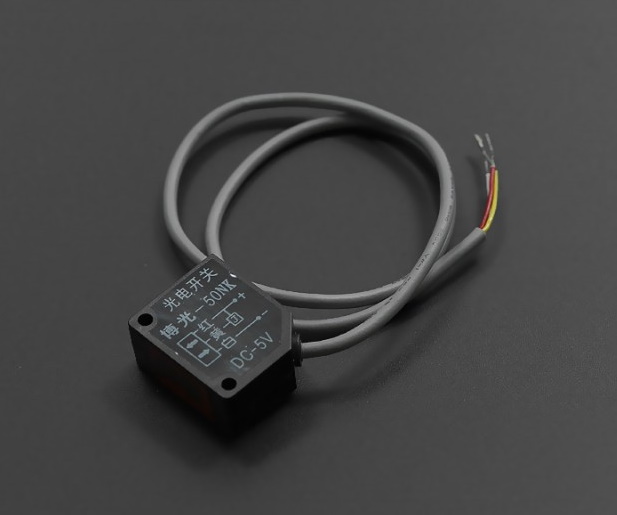

50-NK 3-50 cm reflective IR sensor

Reflective IR photoelectric sensor ระยะตรวจจับ 3-50 ซม. (สามารปรับได้)

Electrical characteristics:
     U: 5VDC
     I: 100mA
     Sn: 3-50CM

size:

     Length: 31MM
     width: 25MM
     thickness: 13MM

      Distance between two holes: 24.5MM

    Lead length: 45CM

Applications:

     1. Automatic counting equipment for production line
     2, multi-function reminder
     3, walking maze robot
     4, kitchen automation system
     5, security anti-theft system, etc.

Photoelectric sensor (photoelectric switch) NPN normally open
technical parameters:

1. Output current DC/SCR/relay Control output: 100mA/5V power supply
2. Consumption current DC<25mA
3. Response time <2ms

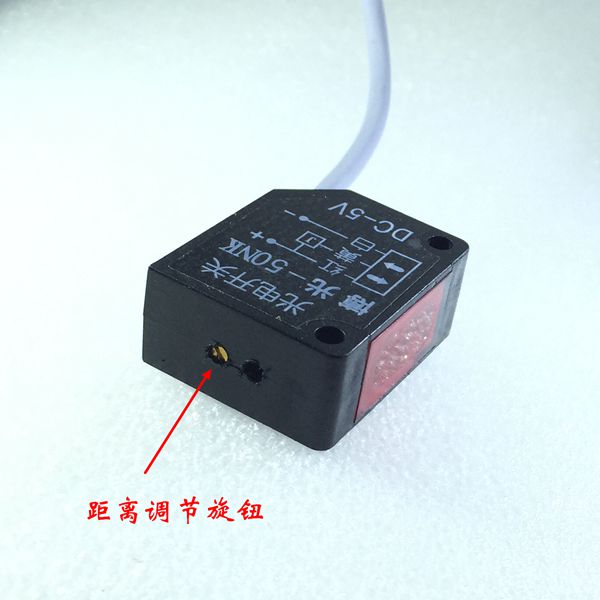

4. Directional angle: ≤15°, effective distance 3-50CM adjustable
5. Detection object: Transparent or opaque body
6, working environment temperature: -25 °C ~ +55 °C
7, standard detection object: sunlight below 10000LX incandescent lamp below 3000LX
8, shell material: plastic
