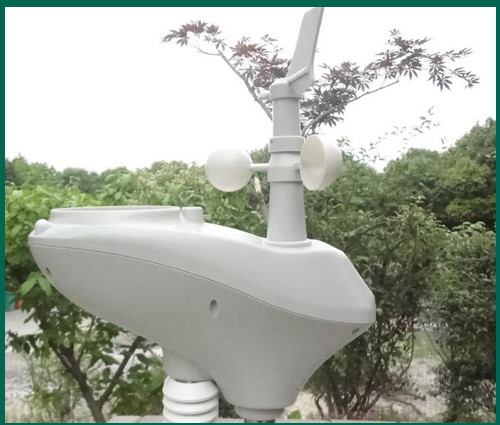

WEATHER STATION WITH RS485 INTERFACE

This listing includes: 1 unit of weather station

With RS485 interface

With cable (2 wires, length: 3.2 meter) (if the length of cable/wire is not enough for you, you can connect a longer cable for it.)

Including 1 unit of USB adaptor(RS485 to USB) (convenient to connector to computer)

No display for it

Communication protocol will be provided.

Application: it is suitable for the customers to extract the data from the weather station through the cable by their own designed software, to their own server(computer).

Attention: Before order, please ensure you know how to design the software to extract the data. What we can support only is to provide the communication protocol to you.

1. Wind Vane

2. Wind Speed Sensor

3. water proof connector

4. Battery compartment

5. LED Indicator

6. Reset button

7. Thermo-hygro sensor

8. UV sensor

9. Light sensor

10. Rain collector

11. Bubble level

Specifications

Communication protocol (UART format): baud rate:9600, parity:NONE, bits:8, stop:1

Temperature range :     -30˚C--60˚C

Accuracy  :     + / - 1 °C

Resolution  :     0.1˚C

rel. humidity range:     10%～99%

Accuracy  :      +/- 5%

Rain volume display  :     0 – 9999mm

Accuracy :      + / - 10%

Resolution :      0.3mm (if rain volume < 1000mm)

                            1mm (if rain volume > 1000mm)

Wind speed :  0-50m/s (0~100mph)

Accuracy:   +/- 1m/s (wind speed< 5m/s)

                      +/-10% (wind speed > 5m/s)

Light  :      0-300k Lux

Accuracy  : +/-15%

Measuring interval  : 16 sec

(remark: there's NO air pressure measurement )

Power consumption

3xAA  rechargeable batteries (not included in the package)
