VL53L0X V2 Laser Ranging Sensor Module

Description:

• The VL53L0X time-of-flight range sensor is a new generation of laser rangefinder modules. This board is a carrier for the VL53L0X, so we recommend careful reading of the VL53L0X datasheet before using this product. The VL53LOX is a fully integrated sensor with embedded infrared, eye-safe lasers, advanced filters and ultrafast photonic detection arrays for longer range, faster and Higher accuracy.
• The VL53L0X's sensing capabilities support a wide range of features including gesture sensing or proximity detection for a variety of innovative user interfaces, obstacle detection and collision avoidance systems for sweeping robots, service robots, consumer sensing panels, and laptop users Test or power switch monitors, and unmanned aerial vehicles and Internet of Things (IoT) products.
• Working voltage: 3 ~ 5V
• Communication method: IIC
• Measurement of absolute distance: 2m
• Xshutdown / GPIO (Interrupt)

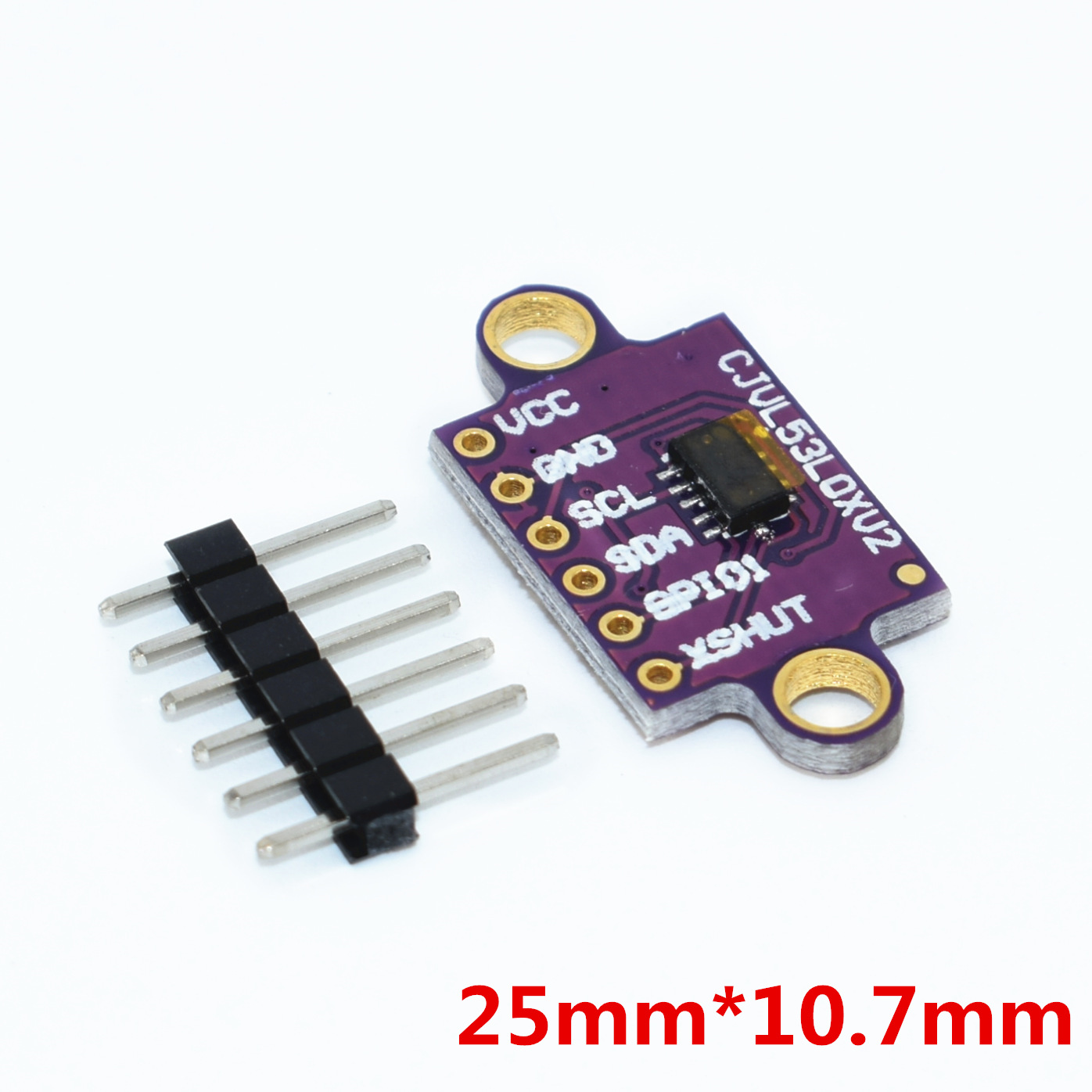

• size:25mm*10.7mm
• Hole pitch:19.3mm
