CC2531 ZigBee USB dongle

ZigBee CC2531 USB dongle

ใช้สำหรับต่อเข้ากับ PC หรือ บอร์ดอื่นๆ ผ่าน USB สามารถทำหน้าที่ได้หลากหลาย

1. ใช้เป็น packet sniffer โดยโปรโตคอลที่สามารถรองรับเป็นไปดังตารางด้านล่างนี้

2. หรือใช้ควบคุม PC หรือใช้รับ ส่งข้อมูล หรือใช้ร่วมกับโปรแกรม ZigBee Linux Gateway

Question 1: CC2531USB Dongle what is the use?

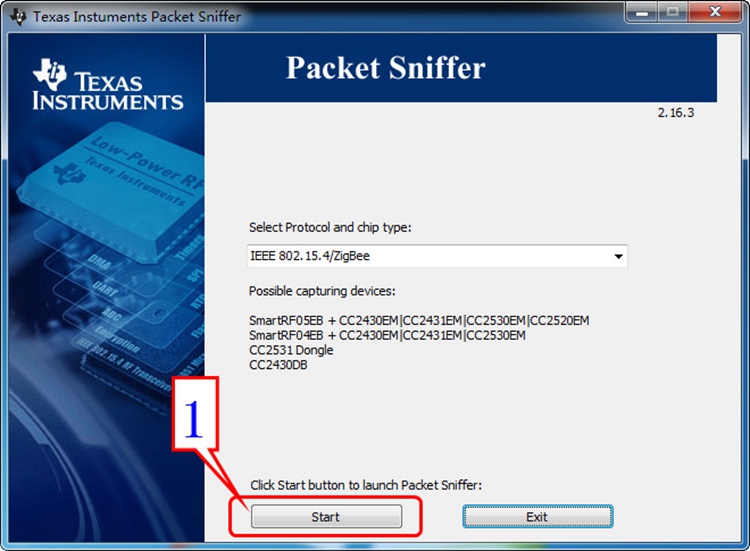

A: First, it is important to use a function as PacketSniffer using CC2531USBDongle with PacketSniffer to capture wireless packets, which is very helpful when the wireless protocol development. For example, two CC2530 communicate with each other, but the receiver has no data, this is the need to analyze CC2531USBDongle the sender is not issued data it is sending incorrect data yet.

Secondly, another important feature for developing HID device can be used as a receiving terminal CC2531USBDongle to control the computer.

Question 2: The CC2531USB Dongle can reprogram thing?

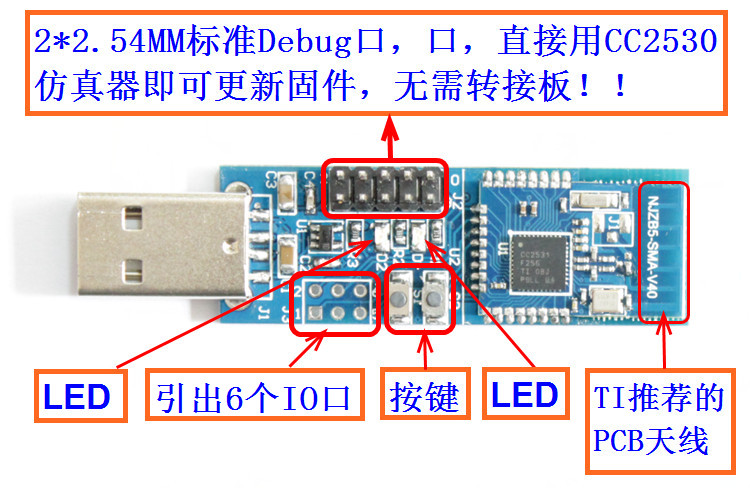

A: Of course, as the dongle's debug port using standard interfaces 2 * 2.54mm, easy to search directly connect this emulator board reprogramming, wireless debug adapter plate. And set aside on CC2531USBDongle 6 Ge GPIO, 2 user keys and two user LED, can use as the CC2531 development board!

Question 3: CC2531USB Dongle capture chip and protocols which support?

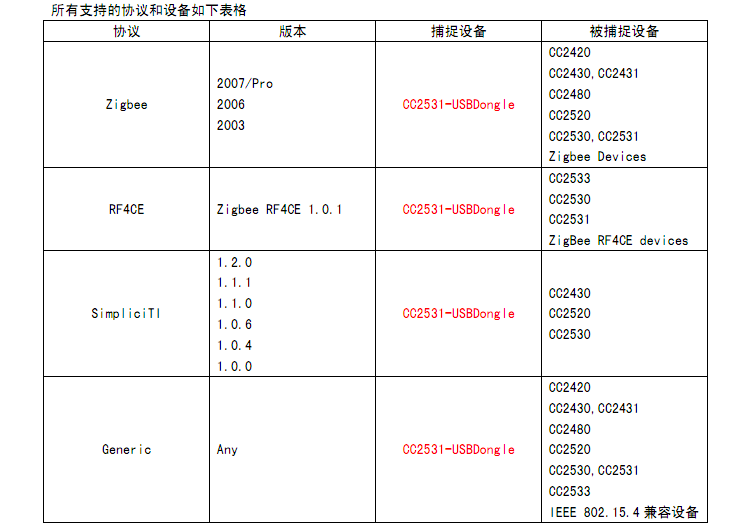

A: This question is very important to support the following wireless protocol and equipment are as follows
